RV25 Air-Operated Diaphragm Pump
Features
• 1 in (25.4 mm) center- and end-porting
• High flow – 40 gpm (151 lpm) in a compact, portable size
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• Epoxy-coated center section for corrosive environments
• Equipped with an effective and reliable air valve system
• External controller for optional remote operation
Typical Applications
• Drum fluid transfer
• Unloading fluids
• Chemical evacuation
• Ceramic glaze supply
• Dewatering and sump evacuation
• Tank and sump drainage
Typical Fluids Handled
• Chemicals
• Contaminated surface water
• Adhesives, varnishes, dispersions, solvents and stains
• Resins, latexes, wood preservative stains, concrete paints and primers
• Ceramic slips and slurries
EMAIL :DLA@SAFESTORE.ONLINE
TEL :+27 66 216 1025
ADDRESS :
14 Dovehouse Road
Everton Gillitts
3625
RV40 Air-Operated Diaphragm Pump
Features
• 1-1/2 in (38.1 mm) end-porting
• High flow – 100 gpm (378 lpm) in a compact, portable size
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• Patented, high-reliability closed center air valve is online serviceable
• Lube-free operation
• Epoxy-coated air section
• External controller for optional remote operation
Typical Applications
• Filter press
• Tank stripping
• Bilge pumping
• Sand and ball mill pumping
• Oil transfer and oil skimming
• Chemical plating
Typical Fluids Handled
• Latex
• Abrasive fluids
• Slurries: petroleum, lime, clay, ferrite, salt/brine and pumice
• Sludge: secondary and clarifier
• Pottery slip
EMAIL :DLA@SAFESTORE.ONLINE
TEL :+27 66 216 1025
ADDRESS :
14 Dovehouse Road
Everton Gillitts
3625
RV50 Air-Operated Diaphragm Pump
Features
• 2 in (50.8 mm) end-porting
• Larger ports for more flow – up to 150 gpm (568 lpm)
• Fluid pressure up to 120 psi (8.4 bar, 0.84 MPa)
• Patented, high-reliability closed center air valve is online serviceable
• Lube-free operation
• Epoxy-coated air section
• External controller for optional remote operation
Typical Applications
• Drum fluid transfer
• Bulk fluid supply
• Chemical evacuation
• Ground water and sump evacuation
• Waste fluid removal
• Tank and bilge drainage
• Slurry and sludge transfer
• Filter press feed
Typical Fluids Handled
• Alkalies and solvents
• Suspensions and dispersions
• Solvents, latex paints, varnishes, resins and adhesives
• Sludge and waste water
EMAIL :DLA@SAFESTORE.ONLINE
TEL :+27 66 216 1025
ADDRESS :
14 Dovehouse Road
Everton Gillitts
3625
RV80 Air-Operated Diaphragm Pump
Features
• 3 in (76.2 mm) ANSI center-porting that is internally threaded 3 npt or bspt
• Bolted leak-free, flanged connections — no clamp bands used
• Large flow paths for high viscosities
• Easy air valve maintenance
• Heavy-duty construction
• Fluid flow up to 275 gpm (1040 lpm)
Typical Applications
• Chemical transfers
• Filter press-feed
• Dewatering
Typical Fluids Handled
• Chemicals
• Bulk paint resins
• Ceramic slip
EMAIL :DLA@SAFESTORE.ONLINE
TEL :+27 66 216 1025
ADDRESS :
14 Dovehouse Road
Everton Gillitts
3625
NON -METALIC AIR OPERATED DIAPHRAGM PUMPS

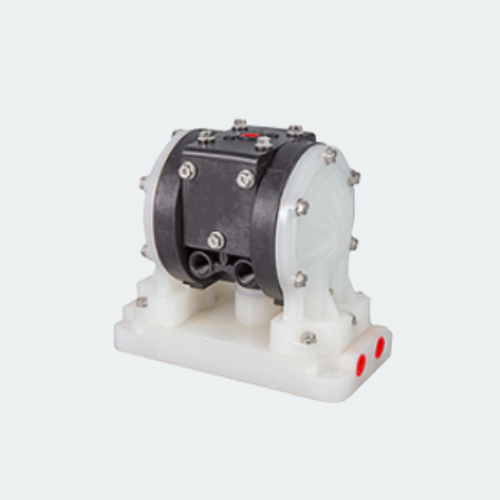

RV06 Non Metalic Air-Operated Diaphragm Pump
Features
• 1/4 in (6.35 mm) end-porting
• Low-cost, compact design
• Spring check valves for superior priming in any mounting configuration
• True-formed PTFE and Santoprene diaphragms for enhanced performance
• External controller for optional remote operation
Typical Applications
• Supply pump for OEM applications
• Printing ink supply
• Wastewater chemical supply
• Plating/surface finishing
• Chemical dosing
Typical Fluids Handled
• Waterborne materials, some HHC’s
• Paints, coatings, inks and dyes
• Car wash chemicals
• Laundry chemicals and detergents
• Chemicals
• Inks
EMAIL :DLA@SAFESTORE.ONLINE
TEL :+27 66 216 1025
ADDRESS :
14 Dovehouse Road
Everton Gillitts
3625

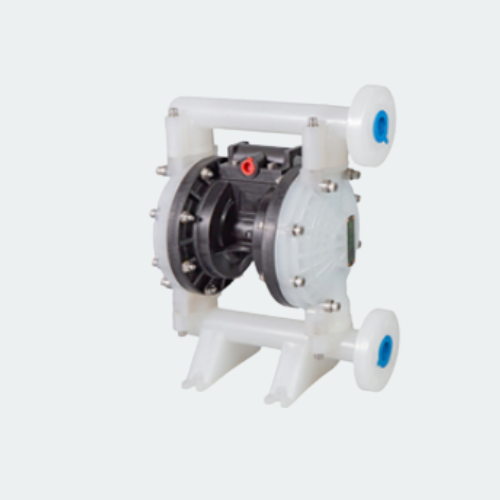

RV25 Non Metalic Air-Operated Diaphragm Pump
Features
• 1 in (25.4 mm) end-porting
• High flow – 40 gpm (151 lpm) in a compact, portable size
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• Epoxy-coated center section
• External controller for optional remote operation
Typical Applications
• Drum fluid transfer
• Unloading fluids
• Transferring high temperature acids
• Chemical evacuation
• Tank and sump drainage
• Circulating plating chemical tank
Typical Fluids Handled
• Chemicals
• Acetic acid
• Chromic acid
• Hydrochloric acid
• Hydrofluoric acid
• Sulfuric acid
• Nitric acid
• Phosphoric acid
EMAIL :DLA@SAFESTORE.ONLINE
TEL :+27 66 216 1025
ADDRESS :
14 Dovehouse Road
Everton Gillitts
3625

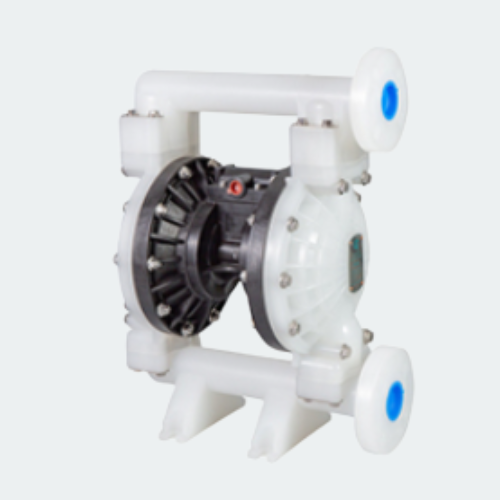

RV40 Non Metalic Air-Operated Diaphragm Pump
Features
• 1-1/2 in (38.1 mm) end-porting
• High flow – 100 gpm (378 lpm) in a compact, portable size
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• Patented, high-reliability closed center air valve is online serviceable
• Lube-free operation
• Epoxy-coated air section
• External controller for optional remote operation
Typical Applications
• Tank transfer
• Tank stripping
• Chemical tank plating
• Transferring high temperature acids and gases
Typical Fluids Handled
• Chemicals
• Corrosive fluids
• Acids and gases: acetic, chromic, hydrochloric, hydrofluoric, sulfuric, nitric and phosphoric
EMAIL :DLA@SAFESTORE.ONLINE
TEL :+27 66 216 1025
ADDRESS :
14 Dovehouse Road
Everton Gillitts
3625

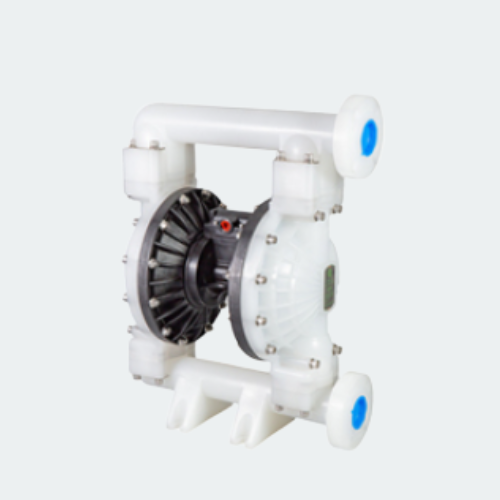

RV50 Non Metalic Air-Operated Diaphragm Pump
Features
• 2 in (50.8 mm) ANSI end-porting
• Larger ports for more flow — up to 150 gpm (568 lpm)
• Fluid pressure up to 120 psi (8.4 bar, 0.84 MPa)
• Patented, high-reliability closed center air valve is online serviceable
• Lube-free operation
• Epoxy-coated air section
• External controller for optional remote operation
Typical Applications
• Drum fluid transfer
• Bulk fluid supply
• Chemical evacuation
• Ground water and sump evacuation
• Waste fluid removal
• Tank and bilge drainage
• Slurry and sludge transfer
• Filter press feed
Typical Fluids Handled
• Acids and gases: acetic, chromic, hydrochloric, Hydrofluoric, sulfuric, nitric and phosphoric
• Ship cleaning and stripping chemicals
EMAIL :DLA@SAFESTORE.ONLINE
TEL :+27 66 216 1025
ADDRESS :
14 Dovehouse Road
Everton Gillitts
3625

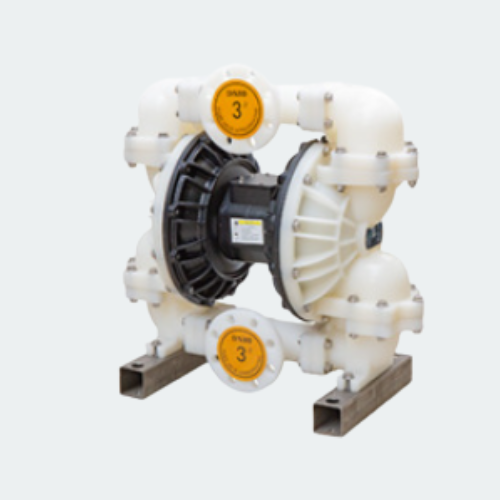

RV80 Non Metalic Air-Operated Diaphragm Pump
Features
• 3 in (76.2 mm) ANSI center-porting that is internally threaded 3 npt or bspt
• Bolted leak-free, flanged connections — no clamp bands used
• Large flow paths for high viscosities
• Easy air valve maintenance
• Heavy-duty construction
• Fluid flow up to 275 gpm (1040 lpm)
Typical Applications
• Chemical transfers
• Filter press-feed
• Dewatering
Typical Fluids Handled
• Chemicals
• Bulk paint resins
• Ceramic slip
EMAIL :DLA@SAFESTORE.ONLINE
TEL :+27 66 216 1025
ADDRESS :
14 Dovehouse Road
Everton Gillitts
3625
